Learn how to use data change table references with your SQL Data Manipulation Language (DML) statements to have instant programmatic access to old, new, and final data values for the rows affected by INSERT, UPDATE, and DELETE statements.

Your applications run millions of daily INSERT, UPDATE, and DELETE data change statements. However, sometimes your applications may need to do more than just run the data change statement. You may also want to see the results of your INSERT, UPDATE, or DELETE to better understand how your data is changing or to do additional processing based on how your data was modified. To do this, you can use a data-change table reference to embed a SQL INSERT, UPDATE, or DELETE statement in the FROM clause of a SELECT statement. The SELECT statement will then return the rows that were modified by the data change statement.

Before IBM i 7.6, support existed for a data-change table reference to use an INSERT statement. In IBM i 7.6, additional support was added for both UPDATE and DELETE statements. Let’s first look at the existing support in IBM i 7.5 and IBM i 7.4, then at the new one in IBM i 7.6.

First, let's create a sample schema to get some existing data to work with.

CALL qsys.create_sql_sample('MYLIB');
SET SCHEMA MYLIB;
SET PATH MYLIB;

Now, let’s insert a row into the EMPLOYEE table. Usually, when I insert a row, I see something like this.

INSERT INTO EMPLOYEE
  VALUES ('300001','JOHN','J','GREEN','D11','1234',CURRENT DATE,
         'DESIGNER',16,'M',DATE('1990-05-10'),60000,NULL,NULL);

I can see that one row was inserted into my table. However, if I change my statement so that the INSERT is embedded in a SELECT statement, my row will be inserted, and a table will be returned with a row for each row inserted. The table reference in the SELECT statement will use the FINAL TABLE syntax to do this. This will return an intermediate result table containing the inserted rows.

SELECT * FROM FINAL TABLE (
  INSERT INTO EMPLOYEE
    VALUES ('300001','JOHN','J','GREEN','D11','1234',
           CURRENT DATE,'DESIGNER',16,'M',
           DATE('1990-05-10'),60000,NULL,NULL)
  );

We are using a generated value to set the CURRENT DATE. If we look at the results table, we can see that the generated value for the current date is ‘2025-04-25’. FINAL TABLE can be a useful tool when working with generated values. For example, your application may need to know the value generated for an identity column. FINAL TABLE can be used to return the identity value generated when the INSERT statement is executed.

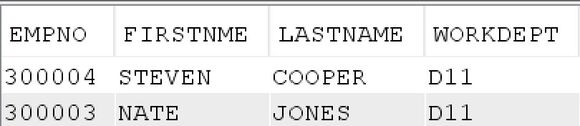

Because this is a SELECT statement, we can modify our query to return only the information we are interested in. For example, I can choose which columns I want to return on the SELECT and use a WHERE clause to only return the rows I am interested in. The following example inserts three rows, but only returns two rows because there is a WHERE clause to only return employees in WORKDEPT D11. The WHERE clause on the SELECT statement does not affect the rows inserted into the table. All three rows are still inserted, even though only two are returned in the intermediate results table.

SELECT EMPNO,FIRSTNME,LASTNAME,WORKDEPT FROM FINAL TABLE (
  INSERT INTO EMPLOYEE
    (EMPNO,FIRSTNME,MIDINIT,LASTNAME,WORKDEPT,PHONENO,
     HIREDATE,JOB,EDLEVEL,SEX)
    VALUES
    ('300002','JANE','A','SMITH','B01','5432',CURRENT DATE,
     'MANAGER',18,'F'),
    ('300003','NATE','C','JONES','D11','9876',CURRENT DATE,
     'ANALYST',17,'M'),
    ('300004','STEVEN','E','COOPER','D11','1928',CURRENT DATE,
     'ANALYST','16','M')
)
 WHERE WORKDEPT = 'D11'
 ORDER BY LASTNAME ASC;

New support for UPDATE and DELETE SQL statements

In the newly released IBM i 7.6, support has been added for embedding the UPDATE and DELETE statements into a query.

Up to this point, we have only used the FINAL TABLE syntax, but there also exist two additional FROM clause qualifiers you can use: OLD TABLE and NEW TABLE. It is essential to understand the difference between the three:

• OLD TABLE
  The data returned are the values of the rows before any BEFORE triggers are executed. This clause can be used with UPDATE and DELETE statements.
• NEW TABLE
  The data returned are the values of the rows after the data change statement is completed, but before referential integrity constraint evaluation is complete, or AFTER triggers are executed. This clause can be used with UPDATE and INSERT statements.
• FINAL TABLE
  The data returned is the same as NEW TABLE, but in addition, it guarantees that no AFTER trigger or RI constraints will cause the data to be changed. Like NEW TABLE, this clause can be used with UPDATE and INSERT statements.

Let’s look at an example. In this example, we will delete all sales from the SALES table before January 1^st, 1996. We will embed the DELETE statement in a SELECT statement and use the OLD TABLE syntax to return the intermediate results table that contains the rows from the SALES table that were deleted.

SELECT * FROM OLD TABLE (
  DELETE FROM SALES WHERE SALES_DATE < DATE('1996-01-01')
);

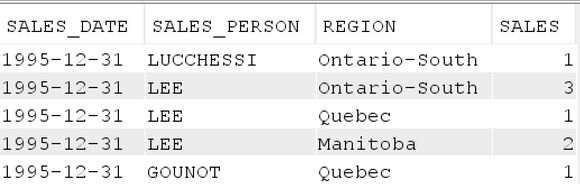

We can see the five rows that were deleted from the table.

We can also use the OLD TABLE clause to see the data's value before an UPDATE statement updates rows. Let’s look at an example where a SALES_PERSON name is being changed from LUCCHESSI to SMITH.

SELECT * FROM OLD TABLE (
 UPDATE SALES
   SET SALES_PERSON = 'SMITH'
   WHERE SALES_PERSON = 'LUCCHESSI');

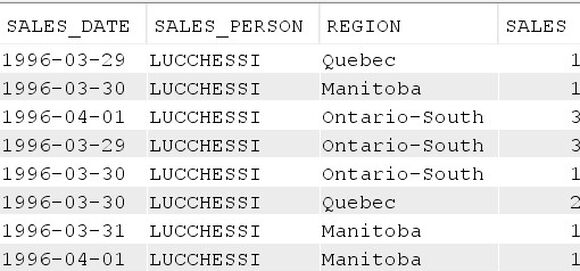

Notice that the SALES_PERSON name is still ‘LUCCHESSI’. If I then change the query to use FINAL TABLE, I will see the rows' values after the data change statement is completed.

SELECT * FROM FINAL TABLE (
 UPDATE SALES
   SET SALES_PERSON = 'SMITH'
   WHERE SALES_PERSON = 'LUCCHESSI');

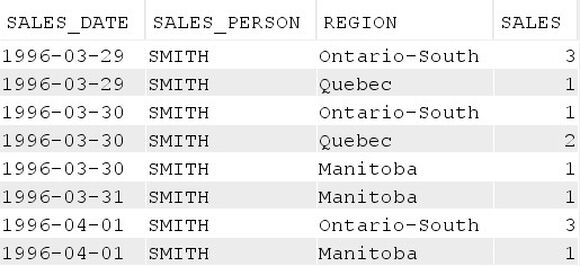

Now we can see that the SALES_PERSON name has been changed to ‘SMITH’

Using INCLUDE columns to audit values

You may want to see both the original value and the final value of a column that is changing. To do that, you can use INCLUDE columns. An INCLUDE column allows you to specify a column that is included in the intermediate result table in addition to the columns that already exist in the table. In the following example, we use FINAL TABLE to see the final results after the BONUS value of an employee is increased, but we also want to see the original value of the BONUS column. To do that, we will INCLUDE a column called BONUS_OLD_VALUE and set that value to the current BONUS value before setting the BONUS value to the increased value.

SELECT EMPNO, LASTNAME, BONUS_OLD_VALUE, BONUS
  FROM FINAL TABLE (
  UPDATE EMPLOYEE
   INCLUDE (BONUS_OLD_VALUE DEC(9,2))
   SET BONUS_OLD_VALUE = BONUS,
       BONUS = BONUS * 1.06
  )
 WHERE EMPNO = '000020';

Using the OLD TABLE, NEW TABLE, and FINAL TABLE, combined with your INSERT, UPDATE, and DELETE statements, gives you additional tools to better understand what is happening to your data and provides additional audit capabilities. For further information about the IBM i 7.6 enhancement, see https://www.ibm.com/support/pages/node/7229557. This enhancement was provided in the IBM i 7.6 base release.

Sarah Mackenzie is a Db2 for i Senior Software Engineer. She has worked on the IBM i development team since she joined IBM in 2012. During that time, she has focused on both database and query and has worked on the design, development, and support of new enhancements for IBM i such as Temporal Tables, Db2 Mirror, and Geospatial Analytics with Watson. Sarah is also a speaker at many industry events.
